Working with Report Data (Excel or Director's Station)
Opening
Librarians often find themselves working with speadsheets, in particular, Excel files. Excel is the most popular spreadsheet software. Spreadsheets are designed to store and analyze tabular or categorized data. Librarians also use a tool called Director’s Station that allows creation of reports of library data.
While these two tools can be useful, there are some limitations
- They often require repetative tasks to be performed in creation of reports
- They cost money to purchase licenses
- A librarian may need to learn two sets of skills - one for Excel, one for Director’s station - to perform very similar tasks
By coupling learning how to program in a general-purpose language like Python with an understanding of how data is stored, a librarian can learn to automate tasks to save time and to overcome new obstacles they discover in either Excel, Director’s Station or any other software tool.
The rest of this chapter will explore how to use Python to manipulate library-related data. We acknowledge that not all librarians use the same tools, but we have designed this lessons to be as general as possible.
A simple example

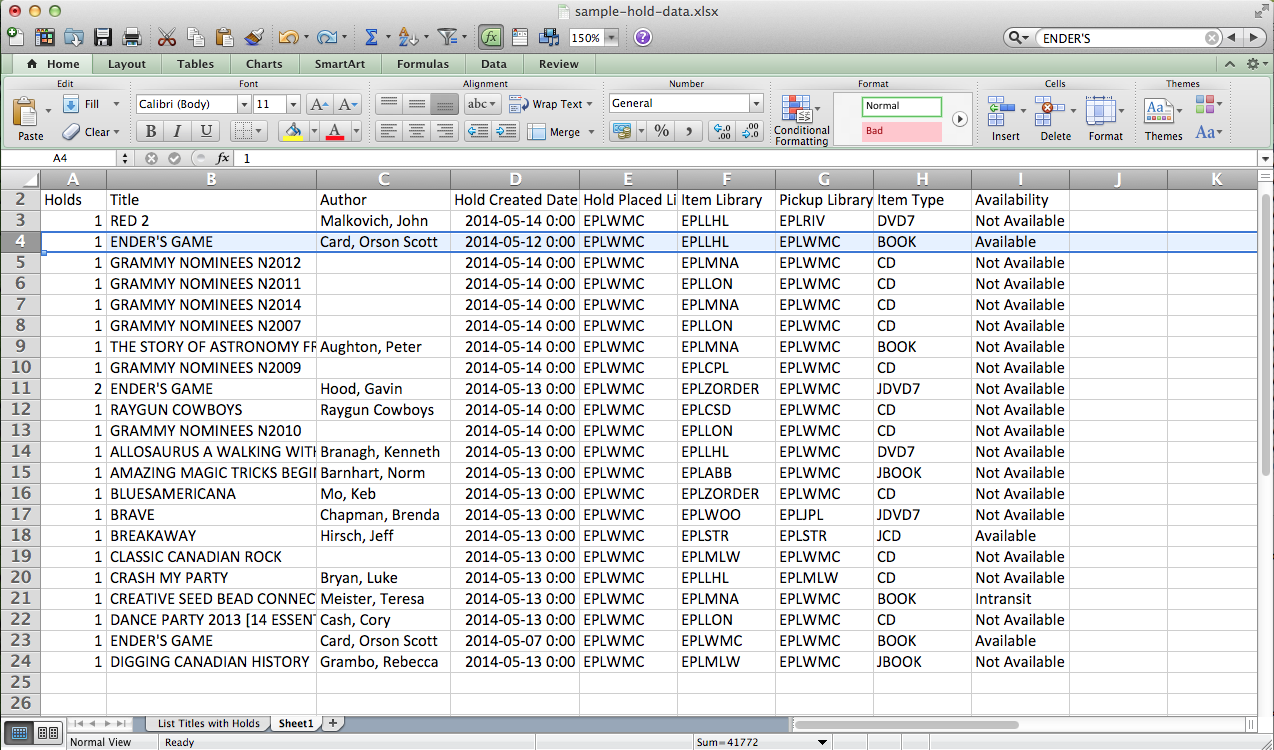

Consider a the following data as an example of a spreadsheet that a librarian may find themself working with.
Eventually, we will get to the point where can know how many holds there are on Ender’s Game.
Here is the data of the above spreadsheet exported as CSV file.
List Titles with Holds,,,,,,,,
Holds,Title,Author,Hold Created Date,Hold Placed Lib,Item Library,Pickup Library,Item Type,Availability
1,RED 2,Malkovich, John,2014-05-14 0:00,EPLWMC,EPLLHL,EPLRIV,DVD7,Not Available
1,ENDER'S GAME,Card, Orson Scott,2014-05-12 0:00,EPLWMC,EPLLHL,EPLWMC,BOOK,Available
1,GRAMMY NOMINEES N2012,,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2011,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2014,,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2007,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,THE STORY OF ASTRONOMY,Aughton, Peter,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,BOOK,Not Available
1,GRAMMY NOMINEES N2009,,2014-05-14 0:00,EPLWMC,EPLCPL,EPLWMC,CD,Not Available
1,ENDER'S GAME,Hood, Gavin,2014-05-13 0:00,EPLWMC,EPLZORDER,EPLWMC,JDVD7,Not Available
1,RAYGUN COWBOYS,Raygun Cowboys,2014-05-14 0:00,EPLWMC,EPLCSD,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2010,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,ALLOSAURUS A WALKING WITH,Branagh, Kenneth,2014-05-13 0:00,EPLWMC,EPLLHL,EPLWMC,DVD7,Not Available
1,AMAZING MAGIC TRICKS BEGINNER LEVEL,Barnhart, Norm,2014-05-13 0:00,EPLWMC,EPLABB,EPLWMC,JBOOK,Not Available
1,BLUESAMERICANA,Mo, Keb,2014-05-13 0:00,EPLWMC,EPLZORDER,EPLWMC,CD,Not Available
1,BRAVE,Chapman, Brenda,2014-05-13 0:00,EPLWMC,EPLWOO,EPLJPL,JDVD7,Not Available
1,BREAKAWAY,Hirsch, Jeff,2014-05-13 0:00,EPLWMC,EPLSTR,EPLSTR,JCD,Available
1,CLASSIC CANADIAN ROCK,,2014-05-13 0:00,EPLWMC,EPLMLW,EPLWMC,CD,Not Available
1,CRASH MY PARTY,Bryan, Luke,2014-05-13 0:00,EPLWMC,EPLLHL,EPLMLW,CD,Not Available
1,CREATIVE SEED BEAD CONNECT, JUMP RINGS, AND C,Meister, Teresa,2014-05-13 0:00,EPLWMC,EPLMNA,EPLWMC,BOOK,Intransit
1,DANCE PARTY 2013 [14 ESSENTIAL HITS,Cash, Cory,2014-05-13 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,ENDER'S GAME,Card, Orson Scott,2014-05-07 0:00,EPLWMC,EPLWMC,EPLWMC,BOOK,Available
1,DIGGING CANADIAN HISTORY,Grambo, Rebecca,2014-05-13 0:00,EPLWMC,EPLMLW,EPLWMC,JBOOK,Not Available
Our problem
As part of an annual report, we want to know what our items with the most holds are. We could compare number of holds to, say, the number of copies of each popular item.
Looking at the above, the most popular item is Ender’s Game by Orson Scott Card? We can figure this out by counting. But, the actual file containing these hold records has over 35000 hold records. Clearly we can’t count that many and so need to automate.
For this problem we’re going to use BASH shell programming to answer it, not Python. So we have to figure out the important information is? It’s obviously the title of the item which is the second column. Each line only represents 1 hold, so the 1 in the first column doesn’t actually tell us anything. So what we need to know is how many lines have the same item in the second column, the title.
Display the file
Let’s start simply by printing out the whole file (it’s only 22 lines). cat is the program to do this. Simply run
% cat simple.csv
and you’ll get all the text of the file
The Ugly Header
The first two lines of the file are not meaningful in terms of actual holds, they’re just headers from the spreadsheet.
List Titles with Holds,,,,,,,,
Holds,Title,Author,Hold Created Date,Hold Placed Lib,Item Library,Pickup Library,Item Type,Availability
There’s a program called tail that prints out the last part of a file. We want almost all of the file, but we want to skip the first two lines. This is super easy to do with tail. The parameter -n +3 tells tail to start from the 3rd line. So
% tail -n +3 simple.csv
will give us
1,RED 2,Malkovich, John,2014-05-14 0:00,EPLWMC,EPLLHL,EPLRIV,DVD7,Not Available
1,ENDER'S GAME,Card, Orson Scott,2014-05-12 0:00,EPLWMC,EPLLHL,EPLWMC,BOOK,Available
1,GRAMMY NOMINEES N2012,,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2011,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2014,,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2007,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,THE STORY OF ASTRONOMY,Aughton, Peter,2014-05-14 0:00,EPLWMC,EPLMNA,EPLWMC,BOOK,Not Available
1,GRAMMY NOMINEES N2009,,2014-05-14 0:00,EPLWMC,EPLCPL,EPLWMC,CD,Not Available
2,ENDER'S GAME,Hood, Gavin,2014-05-13 0:00,EPLWMC,EPLZORDER,EPLWMC,JDVD7,Not Available
1,RAYGUN COWBOYS,Raygun Cowboys,2014-05-14 0:00,EPLWMC,EPLCSD,EPLWMC,CD,Not Available
1,GRAMMY NOMINEES N2010,,2014-05-14 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,ALLOSAURUS A WALKING WITH,Branagh, Kenneth,2014-05-13 0:00,EPLWMC,EPLLHL,EPLWMC,DVD7,Not Available
1,AMAZING MAGIC TRICKS BEGINNER LEVEL,Barnhart, Norm,2014-05-13 0:00,EPLWMC,EPLABB,EPLWMC,JBOOK,Not Available
1,BLUESAMERICANA,Mo, Keb,2014-05-13 0:00,EPLWMC,EPLZORDER,EPLWMC,CD,Not Available
1,BRAVE,Chapman, Brenda,2014-05-13 0:00,EPLWMC,EPLWOO,EPLJPL,JDVD7,Not Available
1,BREAKAWAY,Hirsch, Jeff,2014-05-13 0:00,EPLWMC,EPLSTR,EPLSTR,JCD,Available
1,CLASSIC CANADIAN ROCK,,2014-05-13 0:00,EPLWMC,EPLMLW,EPLWMC,CD,Not Available
1,CRASH MY PARTY,Bryan, Luke,2014-05-13 0:00,EPLWMC,EPLLHL,EPLMLW,CD,Not Available
1,CREATIVE SEED BEAD CONNECT, JUMP RINGS, AND C,Meister, Teresa,2014-05-13 0:00,EPLWMC,EPLMNA,EPLWMC,BOOK,Intransit
1,DANCE PARTY 2013 [14 ESSENTIAL HITS,Cash, Cory,2014-05-13 0:00,EPLWMC,EPLLON,EPLWMC,CD,Not Available
1,ENDER'S GAME,Card, Orson Scott,2014-05-07 0:00,EPLWMC,EPLWMC,EPLWMC,BOOK,Available
1,DIGGING CANADIAN HISTORY,Grambo, Rebecca,2014-05-13 0:00,EPLWMC,EPLMLW,EPLWMC,JBOOK,Not Available
Play around with tail and see what it does. In fact, I encourage your to play around with all the shell programs in this lesson as we come across them.
Filtering the important information
Now we have just the meaningful lines, but not every piece of data is necessary to solve our problem for what is the most popular hold item. Needing only the second column, we turn to the cut program to extract only that column. cut is made to work with columnar data. It works like this
cut -d , -f 2
the -d parameter gives the delimiter (the character that separates columns). Since this is a CSV file (Comma Separate Values) the delimite is a comma. The -f parameter tells cut which columns to print. We can print as many as we want. For example, if we want the 2nd, 5th and 9th columns, we could give the parameter -f 2,5,9 which would print
,,
Title,Hold Placed Lib,Availability
RED 2,2014-05-14 0:00,DVD7
ENDER'S GAME,2014-05-12 0:00,BOOK
GRAMMY NOMINEES N2012,EPLWMC,Not Available
GRAMMY NOMINEES N2011,EPLWMC,Not Available
GRAMMY NOMINEES N2014,EPLWMC,Not Available
GRAMMY NOMINEES N2007,EPLWMC,Not Available
THE STORY OF ASTRONOMY,2014-05-14 0:00,BOOK
GRAMMY NOMINEES N2009,EPLWMC,Not Available
ENDER'S GAME,2014-05-13 0:00,JDVD7
RAYGUN COWBOYS,EPLWMC,Not Available
GRAMMY NOMINEES N2010,EPLWMC,Not Available
ALLOSAURUS A WALKING WITH,2014-05-13 0:00,DVD7
AMAZING MAGIC TRICKS BEGINNER LEVEL,2014-05-13 0:00,JBOOK
BLUESAMERICANA,2014-05-13 0:00,CD
BRAVE,2014-05-13 0:00,JDVD7
BREAKAWAY,2014-05-13 0:00,JCD
CLASSIC CANADIAN ROCK,EPLWMC,Not Available
CRASH MY PARTY,2014-05-13 0:00,CD
CREATIVE SEED BEAD CONNECT,Meister,EPLMNA
DANCE PARTY 2013 [14 ESSENTIAL HITS,2014-05-13 0:00,CD
ENDER'S GAME,2014-05-07 0:00,BOOK
DIGGING CANADIAN HISTORY,2014-05-13 0:00,JBOOK
But, we only want the second column so we run
% cut -d , -f 2
BUT, the data we REALLY want to use is the output of the tail program above, not the original file (it has the ugly header)? How can we get our tail program to send it’s output to our cut program. We do, by using the pipe. A pipe character | is located above the return key, usually the same key as backslash(), so you’ll likely have to press the shift key to access it.
To combine our programs in the way we want we type the following
tail -n +3 simple.csv | cut -d , -f 2
Looks powerful, doesn’t it? This give us the following output
RED 2
ENDER'S GAME
GRAMMY NOMINEES N2012
GRAMMY NOMINEES N2011
GRAMMY NOMINEES N2014
GRAMMY NOMINEES N2007
THE STORY OF ASTRONOMY
GRAMMY NOMINEES N2009
ENDER'S GAME
RAYGUN COWBOYS
GRAMMY NOMINEES N2010
ALLOSAURUS A WALKING WITH
AMAZING MAGIC TRICKS BEGINNER LEVEL
BLUESAMERICANA
BRAVE
BREAKAWAY
CLASSIC CANADIAN ROCK
CRASH MY PARTY
CREATIVE SEED BEAD CONNECT
DANCE PARTY 2013 [14 ESSENTIAL HITS
ENDER'S GAME
DIGGING CANADIAN HISTORY
This is the data we really care about, but how can we calculate the number of times each item appears? The first step is getting all the lines with the same titles together. How do we do that? We sort them!
Combining data
Yes, there’s a program called sort which sorts line alphabetically/lexicographically. Once again, we’ll connect our output from cut to sort with a pipe
tail -n +3 simple.csv | cut -d , -f 2 | sort
No parameters are needed for sort. Now we get,
ALLOSAURUS A WALKING WITH
AMAZING MAGIC TRICKS BEGINNER LEVEL
BLUESAMERICANA
BRAVE
BREAKAWAY
CLASSIC CANADIAN ROCK
CRASH MY PARTY
CREATIVE SEED BEAD CONNECT
DANCE PARTY 2013 [14 ESSENTIAL HITS
DIGGING CANADIAN HISTORY
ENDER'S GAME
ENDER'S GAME
ENDER'S GAME
GRAMMY NOMINEES N2007
GRAMMY NOMINEES N2009
GRAMMY NOMINEES N2010
GRAMMY NOMINEES N2011
GRAMMY NOMINEES N2012
GRAMMY NOMINEES N2014
RAYGUN COWBOYS
RED 2
THE STORY OF ASTRONOMY
So, it would certainly be easier to manually count now as the same title appears on consecutive lines, but remember, we have 35000 hold records, so let’s keep automating.
How can we get the three lines of “ENDER’S GAME” to be counted together? Well, there’s a program to do that too! It’s called uniq and it combines identical consecutive lines into one line. We can even get it to give a count by passing the parameter -c.
tail -n +3 simple.csv | cut -d , -f 2 | sort | uniq -c
and the counts are now at the front of each line
1 ALLOSAURUS A WALKING WITH
1 AMAZING MAGIC TRICKS BEGINNER LEVEL
1 BLUESAMERICANA
1 BRAVE
1 BREAKAWAY
1 CLASSIC CANADIAN ROCK
1 CRASH MY PARTY
1 CREATIVE SEED BEAD CONNECT
1 DANCE PARTY 2013 [14 ESSENTIAL HITS
1 DIGGING CANADIAN HISTORY
3 ENDER'S GAME
1 GRAMMY NOMINEES N2007
1 GRAMMY NOMINEES N2009
1 GRAMMY NOMINEES N2010
1 GRAMMY NOMINEES N2011
1 GRAMMY NOMINEES N2012
1 GRAMMY NOMINEES N2014
1 RAYGUN COWBOYS
1 RED 2
1 THE STORY OF ASTRONOMY
Notice “ENDER’S GAME” has a count of 3 and all others have a count of 1 (the others only appear once). We’ll we have the counts of each hold title now. But, how do we find the maximum value? Well, we can sort them based on the count and the highest count will be at the top. So we’ll use our sort program again. This time we pass the -n parameter to tell sort to sort based on the first value numerically, not lexicographically. We also give the -r parameter to get descending order (the ‘r’ means reverse) rather than ascending and our final output is.
tail -n +3 22-holds.csv | cut -d , -f 2 | sort | uniq -c | sort -n -r
And we get
3 ENDER'S GAME
1 THE STORY OF ASTRONOMY
1 RED 2
1 RAYGUN COWBOYS
1 GRAMMY NOMINEES N2014
1 GRAMMY NOMINEES N2012
1 GRAMMY NOMINEES N2011
1 GRAMMY NOMINEES N2010
1 GRAMMY NOMINEES N2009
1 GRAMMY NOMINEES N2007
1 DIGGING CANADIAN HISTORY
1 DANCE PARTY 2013 [14 ESSENTIAL HITS
1 CREATIVE SEED BEAD CONNECT
1 CRASH MY PARTY
1 CLASSIC CANADIAN ROCK
1 BREAKAWAY
1 BRAVE
1 BLUESAMERICANA
1 AMAZING MAGIC TRICKS BEGINNER LEVEL
1 ALLOSAURUS A WALKING WITH
Summary
We have successfully determined the most popular hold for this file, ENDER’S GAME, and in doing so achieved the following:
- Running shell programs (tail, cut, sort, uniq)
- Extracting select data from CSV files using cut
- Combining multiple programs with pipes
For reference, if we run this program on the actual hold data (35000+ records) it runs in less than 5 seconds, and the output is:
333
282 FROZEN
184 THE BOOK THIEF
153 GRAVITY
151 THE WOLF OF WALL STREET
137 12 YEARS A SLAVE
127 AMERICAN HUSTLE
119 THE HUNGER GAMES PCATCHING FIRE
114 DALLAS BUYERS CLUB
109 CAPTAIN PHILLIPS
The most popular hold is…Frozen (not suprising in 2014) with 282 holds. But what is the 333? Recall we are sorting the 2nd column (title) for the holds. The 333 means that 333 hold records had the title blank (blanks are considered the same and so uniq groups them together). In short, we are using real data and a real librarian would look into how the title field is being left blank.
Need a bigger challenge?
You may treat the follow on as “take home” assignments to add a level of challenge, or if you find the above example too simple then try your hand at these. An instructor may give these to advanced students to occupy them while giving the lesson above.
-
How do we find the most common hold at the EPLWNC branch?
-
Create a shell script that can run these bash commands on any file
% ./most_common_hold.sh simple.csv
